Lub koob yees duab sab nraud (tsis muaj Microphone)
8.29 megapixel HD duab sensor, xa 4K @ 30fps zoo kawg nkaus;
Txhawb OSD ntawv qhia zaub mov, video tsis adjustable. Ua tau raws li ntau yam xwm txheej thiab ntau yam ntawm cov neeg siv khoom nyiam ntawm cov duab ntxim nyiam xav tau;
Hauj lwm lawm
Kev tsis
H1-UAB Camera
Khoom Description
Peb lub koob yees duab sab nraud tsis muaj lub microphone, txhawb nqa 10x zoom (60 degree HOV), thiab nruab nrog 8. Ntxiv rau qhov siab pixels, lub koob yees duab kuj tseem tuaj yeem nthuav tawm 4k daws teeb meem dluab nrog tus ncej tus nqi ntawm 30fps. Hauv cov xwm txheej xws li kev lag luam thiab kev qhia, peb lub koob yees duab sab nraud muaj ntau yam ntawm daim ntawv thov tus nqi.
Lub ntsiab nta
Kev hloov pauv yooj yim
Lub koob yees duab sab nraud ntawm peb lub rooj sib tham sib tham sib pab txhawb OSD ntawv qhia zaub mov, muab cov neeg siv nrog txoj hauv kev yooj yim thiab yooj yim los kho cov teeb meem video. Los ntawm OSD cov ntawv qhia zaub mov, cov neeg siv tuaj yeem kho qhov tsis zoo xws li ci ntsa iab, qhov sib piv, saturation, thiab lwm yam kom ua tau raws li cov duab xav tau hauv cov xwm txheej sib txawv.
01
Kev siv ntsiag to
Lub koob yees duab sab nraud ntawm no sib tham sib whiteboard siv lub tshuab ntsiag to los tsim ib qho chaw ntsiag to rau cov neeg siv. Hauv kev qhia cov xwm txheej, lub koob yees duab ntsiag to yuav tsis cuam tshuam rau qhov kev txiav txim hauv chav kawm, cia cov tub ntxhais kawm mloog ntau dua. Hauv cov rooj sib tham hauv tuam txhab, kom cov neeg tuaj koom tuaj yeem hnov cov ntsiab lus ntawm cov lus hais.
02
Kev yooj yim nqa los ntawm kev tsom xam tsis siv neeg
Lub koob yees duab sab nraud ntawm no sib tham sib whiteboard yog nruab nrog ib tug advanced focusing algorithm, uas yuav nco ntsoov xyuas kom meej thiab pob tshab dluab yam tsis muaj phau ntawv tswj. Qhov no coj kev yooj yim heev rau cov neeg siv. Txawm hais tias hauv kev qhia lossis kev sib tham hauv tuam txhab, cov neeg siv tsis tas yuav siv sijhawm los kho qhov tsom. Lub koob yees duab tuaj yeem hloov kho qhov ua kom pom tseeb hauv lub sijhawm tiag tiag raws li qhov kev ncua deb ntawm qhov kev kawm thiab ib puag ncig hloov pauv kom ntseeg tau tias daim duab ib txwm pom meej.
03
Txhawb ntau yam kev cai
Lub koob yees duab sab nraud ntawm no sib tham sib whiteboard yog sib xws nrog cov kev cai xws li VISCA thiab Pelco-D, uas coj tau yooj yim thiab dav siv rau cov neeg siv. VISCA yog cov txheej txheem kev sib txuas lus uas feem ntau siv hauv kev sib tham video thiab kev soj ntsuam, thaum Pelco-D tau siv dav hauv kev ruaj ntseg. Los ntawm kev ua tau zoo nrog cov txheej txheem no, lub koob yees duab tuaj yeem txuas thiab sib txuas lus nrog ntau yam khoom siv sib txawv thiab cov tshuab.
04
Main Specification
|
Duab Sensor |
1/2.8.CMOS |
|
Muaj txiaj ntsig Pixel |
8.29 megapixel daws |
|
Ua kom pom tseeb |
F=47-4.7 hli |
|
Zoom |
10x |
|
Iris |
F2.36~F2.4 |
|
HOV |
60.0.~6.0. |
|
Focus System |
Auto, manual |
|
Kev Tswj Kev Tiv Thaiv |
Tsis tu ncua aperture, Auto |
|
Shutter Ceev |
1/25~1/10,000 S |
|
White Balance |
Auto, Sab Hauv Tsev, Sab Nraud, ATW, Phau Ntawv Qhia |
|
Digital Noise Reduction |
2D/3D |
|
S/N ratio |
Ntau dua lossis sib npaug li 50dB |
|
Kev them nyiaj yug Backlight |
Txhawb nqa |
|
Dav Dynamic |
Txhawb nqa |
|
Duab Flip |
Duab rov qab, Daim iav flip |
|
Duab Style |
Ib txwm, ntshiab, ci, zoo nkauj |
|
Screen Qauv |
Kab rov tav screen, Vertical screen |
|
60fps System |
Txhawb nqa txog 60 ntas ntawm thiab qis dua 1080p |
|
Video Adjustable Parameters |
Brightness, Contrast, Hawj, Saturation, Clarity, Gamma nkhaus, Gain |
|
OSD Menu |
Suav, Askiv |
|
Fais fab mov |
DC hauv 12V |
|
Interface |
1x RS-232 IN, 1x USB2.0 type-B |

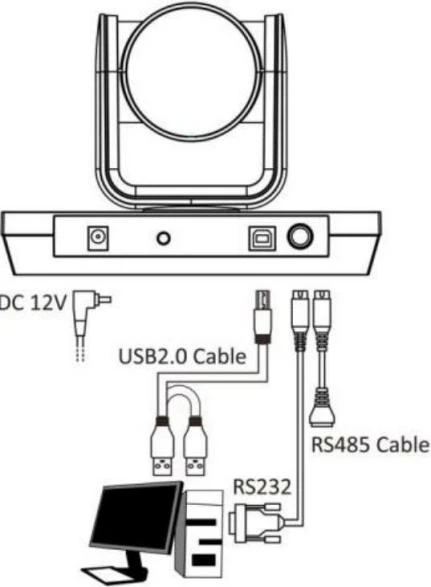

Schematic
Cov lus nug nquag
Nws puas txhawb cov duab parameter hloov?
+
-
Yog lawm. Nws tuaj yeem kho cov duab tsis xws li ci ntsa iab, qhov sib piv, saturation, thiab lwm yam los ntawm cov software cuam tshuam lossis cov cuab yeej teeb tsa kom tau raws li cov duab xav tau hauv cov xwm txheej sib txawv.
Nws tuaj yeem ntsia tau rau qhov twg?
+
-
Nws txhawb ntau txoj kev teeb tsa, suav nrog kev teeb tsa lub koob yees duab, kev teeb tsa desktop thiab kev teeb tsa phab ntsa. Koj tuaj yeem xaiv txoj kev teeb tsa tsim nyog raws li qhov xav tau tiag tiag kom hloov mus rau cov xwm txheej sib txawv.
Puas muaj autofocus muaj nuj nqi?
+
-
Yog lawm, lub koob yees duab no tau nruab nrog lub siab tshaj plaws autofocus algorithm uas tuaj yeem ua kom pom tseeb sai thiab meej ntawm qhov kev kawm yam tsis muaj kev hloov kho, ib txwm ua kom cov duab pom tseeb.
Kev ua tau zoo ntawm lub teeb qis ntawm lub koob yees duab li cas?
+
-
Lub koob yees duab sab nraud no muaj kev ua haujlwm tsis zoo. Nws siv cov duab sensors siab heev thiab kev siv thev naus laus zis los ntes cov duab pom tseeb hauv qhov chaw qis qis. Piv txwv li, nyob rau hauv chav kawm uas tsis muaj teeb pom kev zoo lossis chav sib tham, nws tseem tuaj yeem nthuav tawm cov duab zoo uas tsis muaj suab nrov lossis plooj.
Tus ncej tus nqi ntawm lub koob yees duab yog dab tsi?
+
-
Tus ncej tus nqi ntawm peb cov koob yees duab sab nraud feem ntau yog 30fps. Tus ncej siab tus nqi ua kom cov duab du thaum tua cov scenes dynamic, txo tus dab thiab qhov muag plooj, thiab muab kev pom kev zoo txawm tias kaw nrawm nrawm lossis hu xov tooj.
